Mhvsr

Overview

SmithCo’s Medium High Volume tub was designed for low density payloads that require larger tub volume; such as demolition materials, distillers, manure, compost, and other agricultural products.

The MHVSR tub dumps only to one side and is available on any SX Series axle configuration. The low side of the tub is ideal for loading the trailer with smaller loaders.

Features

  • Stockpile or windrow
  • Watertight; no leaks
  • AR400 Steel Tub, One Piece Floor
  • 80/100 KSI Steel Frames
  • External Column Tub Supports
  • No Center Tub Divider
  • Shot Blast Paint Prep
  • Polyurethane Paint

Specifications

MHVSR Tub Capacities

WaterfullHeaped
34’ tub25 cu yd42 cu yd
36’ tub27 cu yd45 cu yd
Model S2 MHVSR Model S3 MHVSR
Frame Length 39’ 5” 43’ 4”
Tub Length 34’ 36’
Width 102”
Loading Height 8’ 3” @ Tub side, 10’ 4” @ Non-Dump side
Tub Construction

3/16” AR400 Steel

1/4” Tub Floor Option is Available

Frame Construction 80/100 KSI, Fabricated Steel I-Beam
Landing Gear Heavy Duty, Load Bearing Landing Legs are Standard
Bumper Push Bar Type, Bolt On
Cylinders 3500 PSI, 6” Bore
Suspension

Air Ride Suspension Standard

Spring Ride Available

Axles 25,000# Capacity
Hubs 10 Hole, Hub Piloted
ABS 2S1M Anti-Lock Brake System
Drums Outboard Mount, Cast Steel
Wheels Steel Disc, 8.25 x 22.5
Tires 11 R 22.5 G Radial Tires
Brakes 16 ½” x 7”
Fenders Front & Rear, ¼” Synthetic
Lights 12 Volt LED ICC w/Sealed Harness
Mud Flap

(4) Polyline Anti-Spray Splash Guard

Paint

Polyurethane, any combination of gray, white or black

Special colors available upon request

Min. Tractor Hydraulic Reqs. 25-30 GPM, 2,600-2,800 PSI, 10 Gallon Reservoir

Layout Options

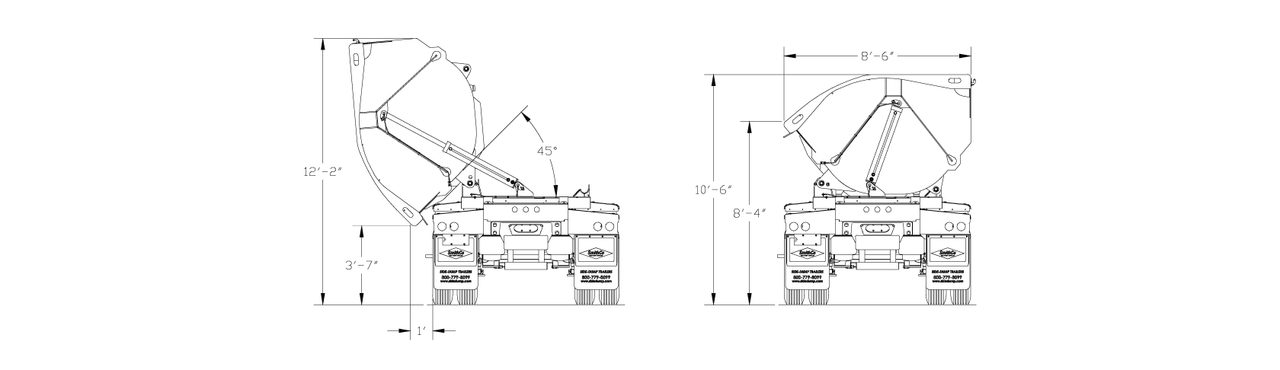

MHVSR Rear View 1
Model MHVSR Rear 1
MHVSR Rear View 2
Model MHVSR Rear 2

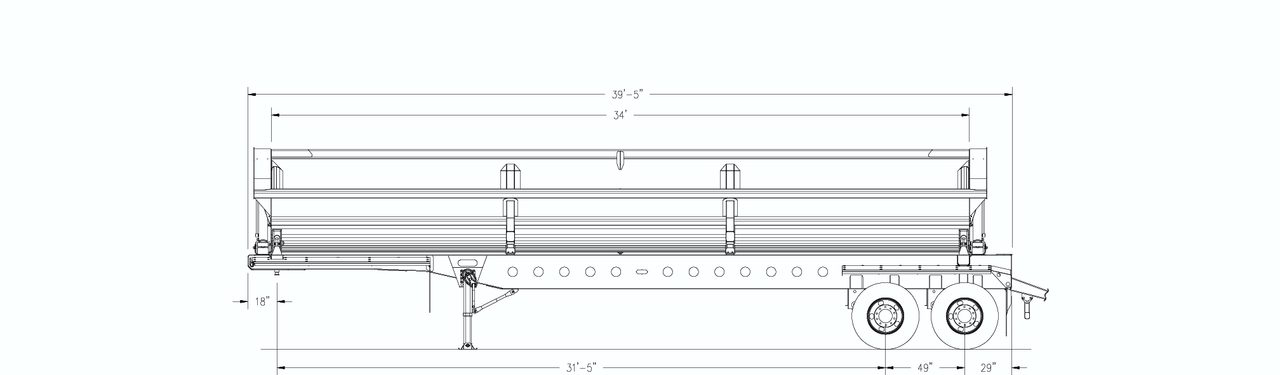

MHVSR S2-4034
Model MHVSR2 4034

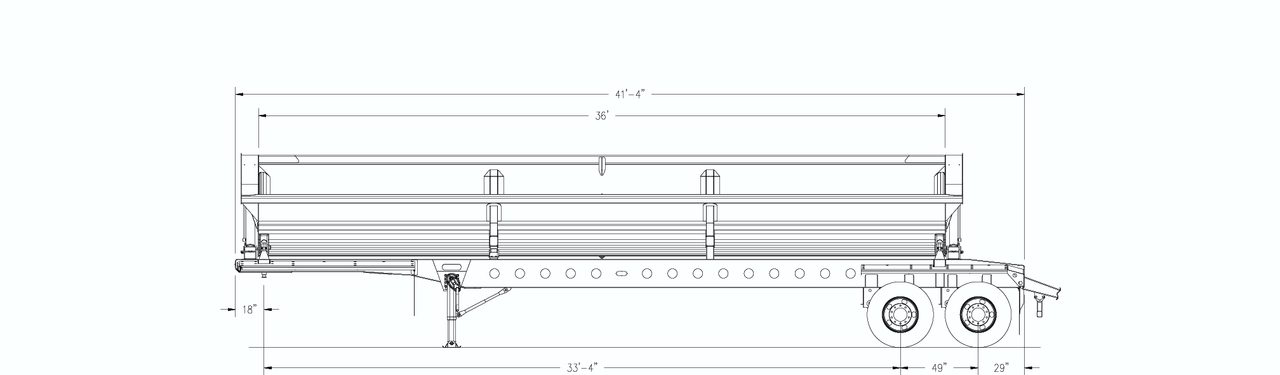

MHVSR S2-4236
Model MHVSR2 4236

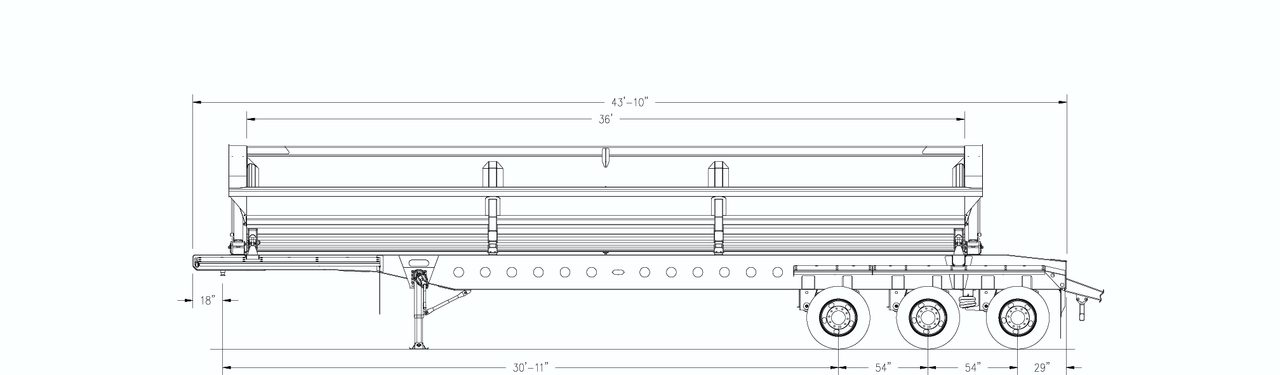

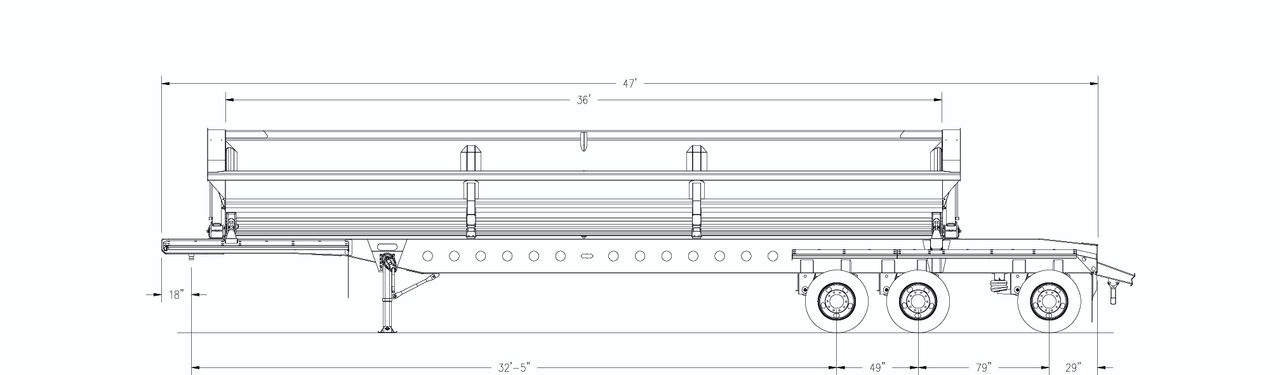

MHVSR S3-4436
Model MHVSR3 4436
MHVSR S3-4736
Model MHVSR3 4736

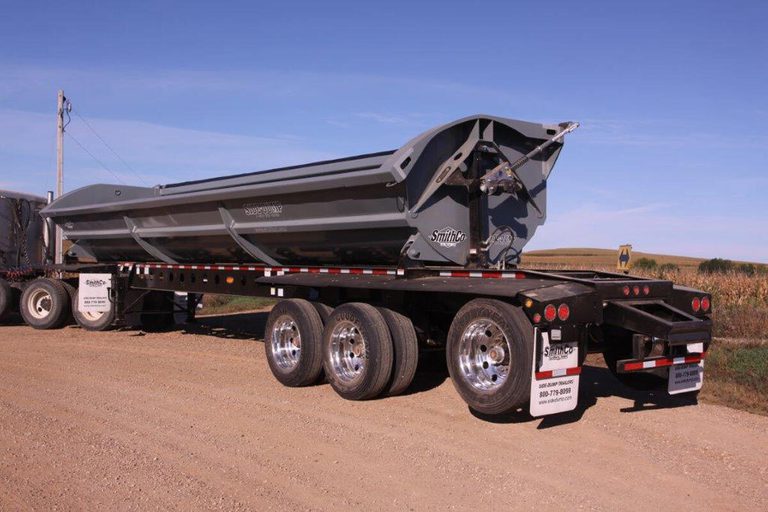

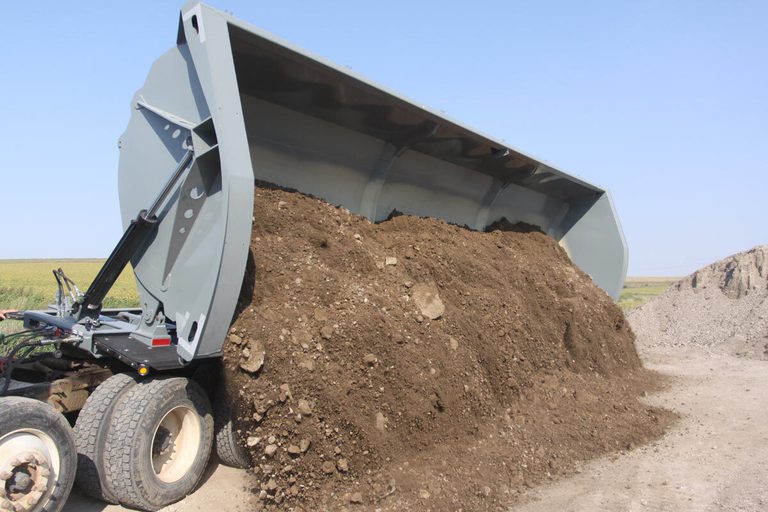

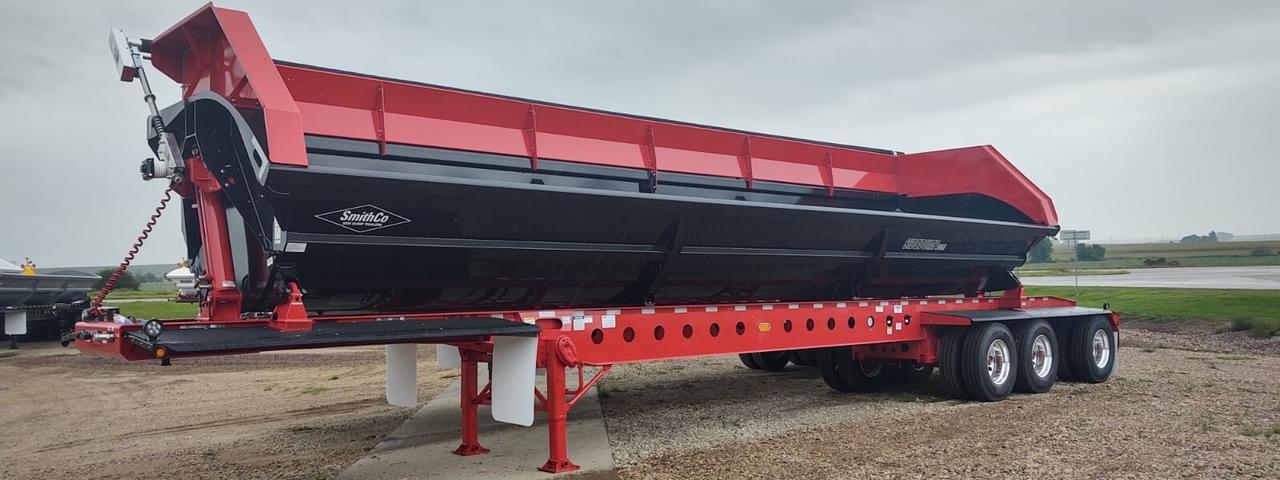

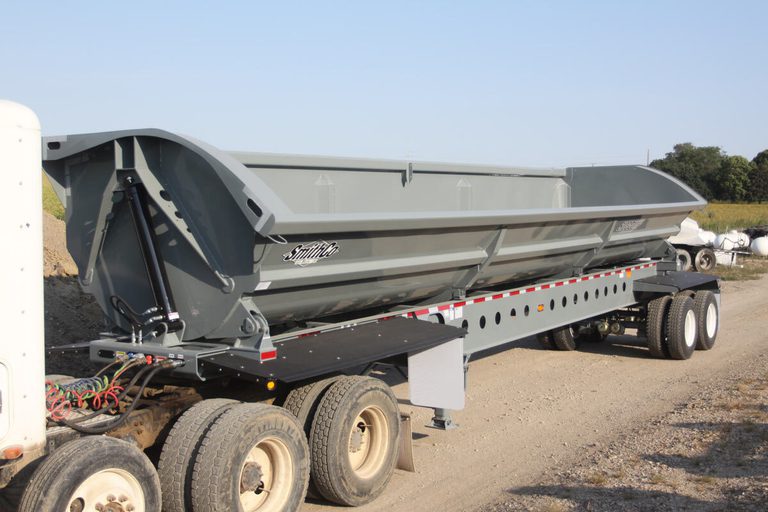

Photos
